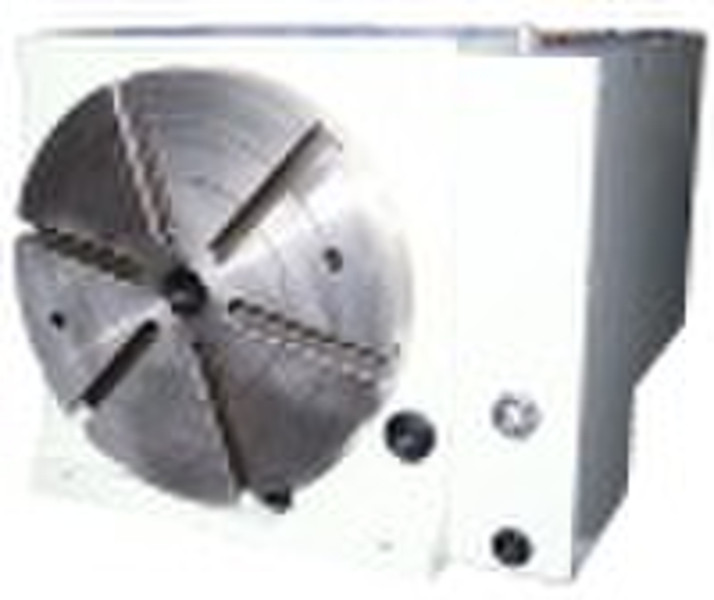

SKT16B NC rotary table

SKT16B series NC rotary table, suitable for vertical use, is a perfect accessory for NC miller and machining center as an additional axis of main machine. Used in combination with the control of NC machine tool or an independent control for non-NC machine tool, continuous cutting work for board type, disk type, hole plate as well as other parts fixed between table and tailstock, can be carried out precisely. Both equal and unequal divisions can be realized. SPECIFICATIONSItemsSKT16250BSKT16315BSKT16400BSKT16500BSKT16630BSKT16800BSKT161000BDia.of table mmΦ250Φ315Φ400Φ500Φ630Φ800Φ1000Center height mm160210260310400465580Total thickness mm190210250290350390435Center bore mmΦ30H6X22Φ40H6X25Φ50H6X28Φ60H6X25Φ70H6X28Φ135H6Φ165H6Width of locating key mm1822Total radio1:1801:360T-slot size mm6-126-146-188-188-22Max.speed r/min11.15.5Servo motor (optional)Power(kw)≥0.8≥1.1≥1.4≥3.8Torque(NM)≥5≥10≥12≥22Dividing accuracy30"25"20"20"20"15"15"Repeatability accuracy6"6"6"6"4"4"4"Clamp torque NM1.5Mpa oil10001800200028004000600060000.5Mpa air300500650800150020002000Workload kgHor.25035050060080020002000Vert.15017530035040010001000Max.inertia (Vert.) kg.cm.s216.455.455.4100200187.5187.5Max.torque capacity N.M30070012001700300050005000N.W.110200325650112513001900
