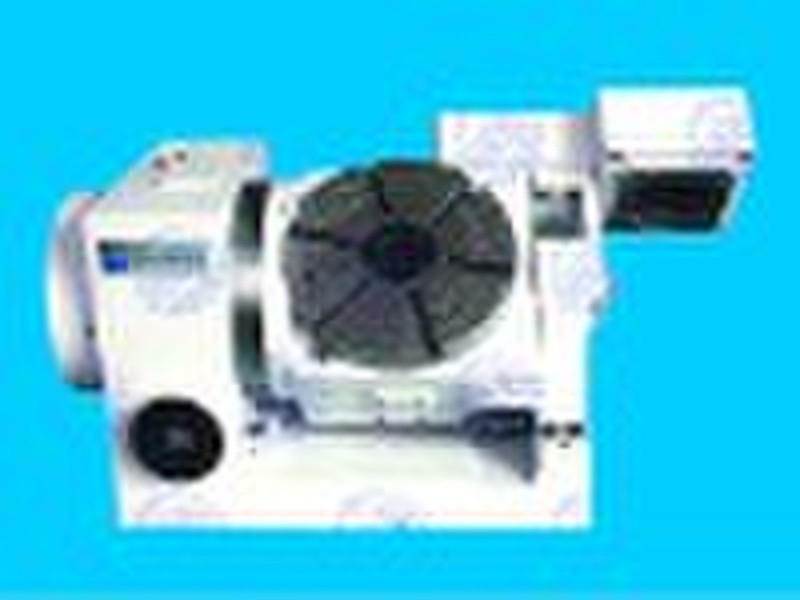

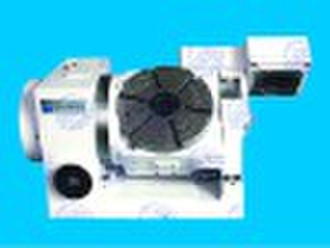

SKT14 NC tilting rotary table

SKT14 NC rotary table is constructed complete with an NC controllable rolary axis as well as an NC controIIable tilting axis, and mainly used with CNC milling machine and machine center. It is controlled either by two-coordinate control system of the main machine or by selfequipped two-coordinate control system. In combination with main machine,holes, slots, cam ,curving line and surface in any angle position can be carried out precisely. Besides,it car also be used in common drilling,milling and boring machines,performing independently equal and unequal divisions. ItemsSKT14100(125)SKT14170BSKT14250BSKT14320BSKT14400ASKT14500BDia.of table mmΦ100(125)Φ170Φ250Φ320Φ400Φ500Center height mm140150220240290390Table height in Hor.position mm213245318351420570Center bore mmΦ20H6Φ35H7Φ30H7Φ100H6Φ130H6Φ180H6Width of locating key mm141822Rotating total radio1:1201:180Tilting total radio1:180T-slot size mm10121418Max.speed r/min3311.1Servo motor power kwRotary axis0.75≥0.8≥1.4Tilting axisServo motor torque NmRotary axis22.46612Tilting axis46.3681012Dividing accuracy secRotary axis454030252020Tilting axis606060454545Repeat accuracy secRotary axis886666Tilting axis101010101010Clamp torque NMRotary axis65(0.5Mpa Air)200(0.5Mpa Air)300(0.5Mpa Air)3000(3.5Mpa Hyd)650(0.5Mpa Air)4000(3.5Mpa Hyd)900(1.5Mpa Hyd)2000(1.5Mpa Hyd)Tilting axis130(0.5Mpa Air)260(0.5Mpa Air)400(0.5Mpa Air)3000(3.5Mpa Hyd)1000(0.5Mpa Air)5000(3.5Mpa Hyd)1200(1.5Mpa Hyd)3000(1.5Mpa Hyd)Max.Workload kgHor.3550100150200400Tilting203575100150200Tilting range-15° 105°0 90°-15° 105°N.W. kg1001003004506001000
