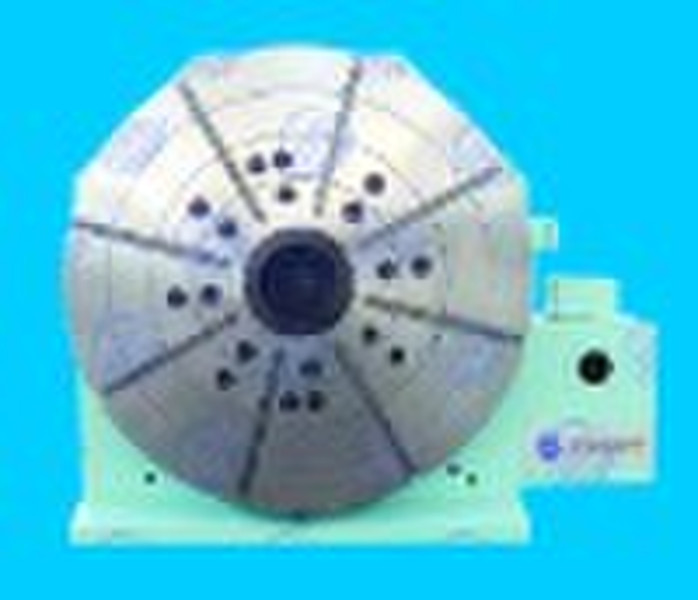

SKT13EL NC rotary table

SKT13EL NC rotary table with through hole in the spindle center is suitable for either horizontal or vertical position, it is a perfect accessory for NC miller and machine center. Used in combination with the control of NC machine tool or an independent control for non-NC machine tool, continuous cutting work for board type, disk type, hole plate as well as other parts fixed between table and tailslock can be carried out precisely,especially with the through hole in the spindle center,hgdraulic(pneumatic)actuating coolect and chuck can be used to proceed long shaft type parts.SPECIFICATIONSItemsSKT13250ELSKT13315ELSKT13400ELSKT13500ELSKT13630ELSKT13800ELSKT131000ELSKT131200ELDia.of table mmΦ250Φ315Φ400Φ500Φ630Φ800Φ1000Φ1200Center height mm160210260310400465580720Total thickness mm190210250290350390435795Center bore mmΦ70H7Φ90H7Φ130H78Φ180H7Φ225H7Φ230H7Φ260HΦ380H7Width of locating key mm182235Total radio1:1801:360T-slot size mm6-126-146-1818H1222H1228H12Max.speed r/min11.15.54.2Servo motor (optional)Power(kw)≥0.8≥1.1≥1.4≥3.8≥5Torque(NM)≥5≥10≥12≥22≥35Dividing accuracy30"25"20"20"20"15"15"15"Repeatability accuracy6"6"6"6"4"4"4"4"Clamp torque NM1.5Mpa oil10001800200028004000600060003.5Mpa oil100000.5Mpa air300500650800150020002000Workload kgHor.25035050060080020002000≥5000Vert.150175300350400100010003000Max.inertia (Vert.) kg.cm.s216.455.455.4100200187.5187.5Max.torque capacity N.M30070012001700300050005000N.W.110200325650112513001900
