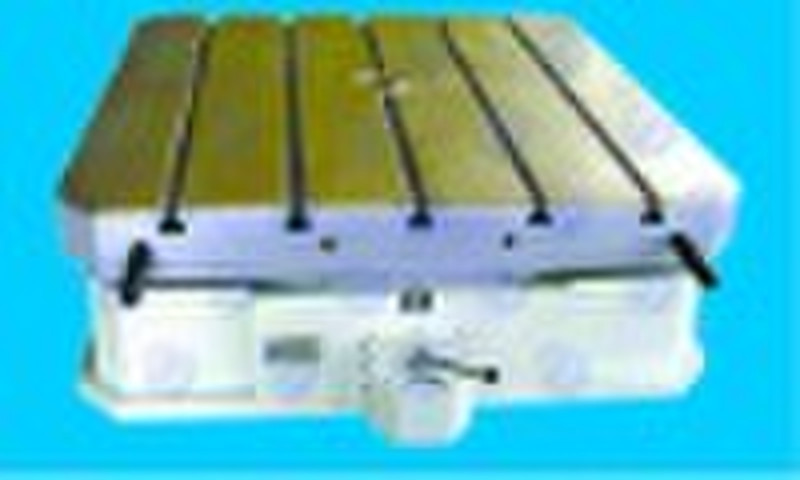

SKQ56 Indexing rotary table

SKQ56 indexing rotary table is designed a face gear as index machanisim,pneumatic lifting and manual rotate.It features small rotating torque,strong load capacity and reliable clamp.It is the ideal accessory for boring machine, milling machine,drilling machine and etc.SpecificationsItemsSKQ56250X250SKQ56315X315SKQ56400X400SKQ56500X500SKQ56630X630SKQ56800X800SKQ561000X1000SKQ561200X1200SKQ561600X1600Table lengthXwidth mm250X250315X315400X400500X500630X630800X8001000X10001200X12001600X1600Total thickness mm140160170190200290290340420Dia.of locating hole mmφ20H6φ25H6φ30H6φ40H6φ40H6φ60H6φ60H6φ60H6φ80H6Width of T-slot mm121414141818182228Stroke of table lifting mm665556666Pneumatic for lock&unlock5 8kg/cTable rotatingManualMin.table graduation angle5°Max.load kg3505001400240035005500550080009000Clamping force kg5008001800280042005900600010000
